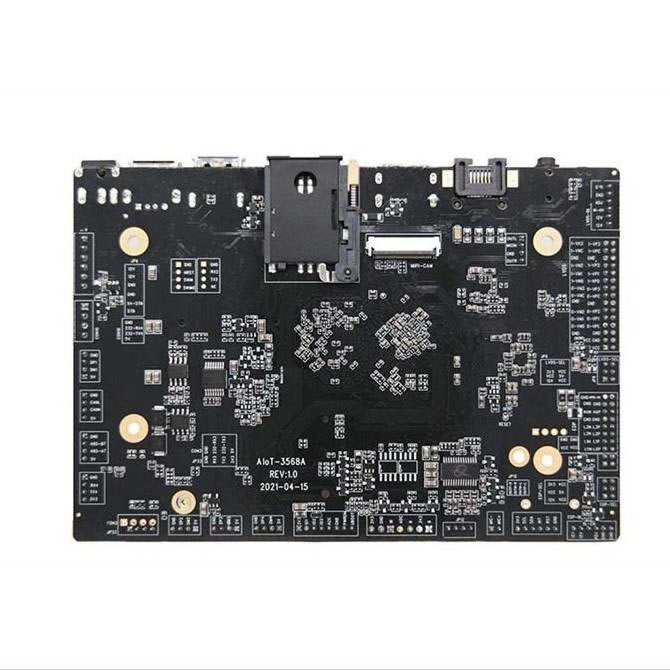

AIoT-3568A Commercial Display Mainboard
AIoT-3568A Commercial Display Mainboard

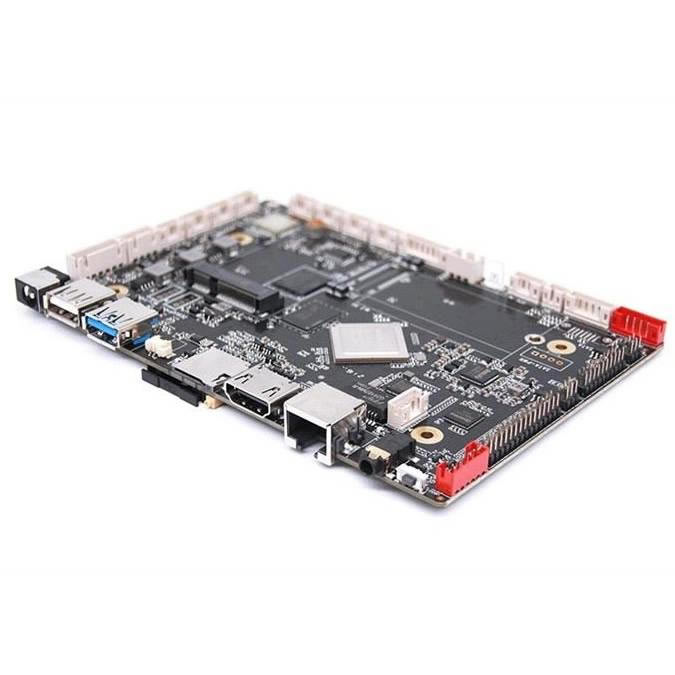

1. High integration. Integrate HDMI/LVDS/EDP/Ethernet/WIFI/Bluetooth in one, simple and ultra-thin, outstanding.
2. Built-in PCI-E 3/4G module interface. Supports multiple PCI-E 3G/4G modules such as Huawei and Longshang to access the Internet.
3. Built-in M.2 5G module interface. Supports multiple M.2 5G modules such as Huawei, Gosuncn, and Guanghetong to access the Internet.

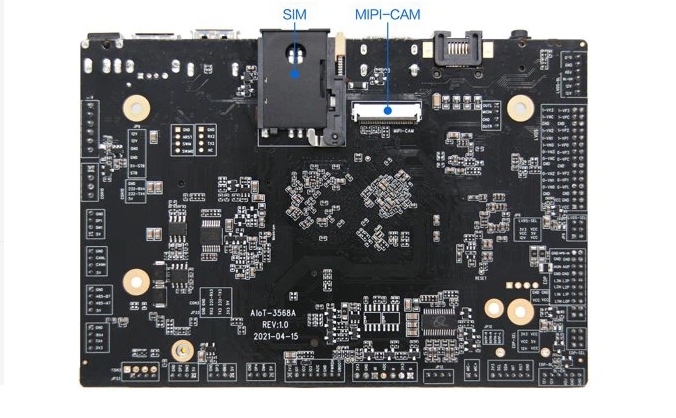

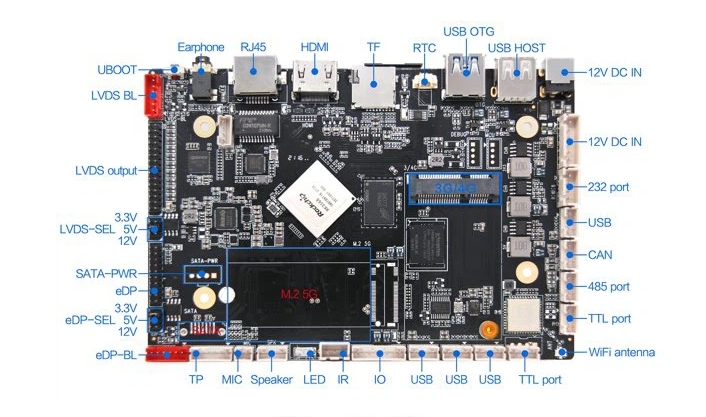

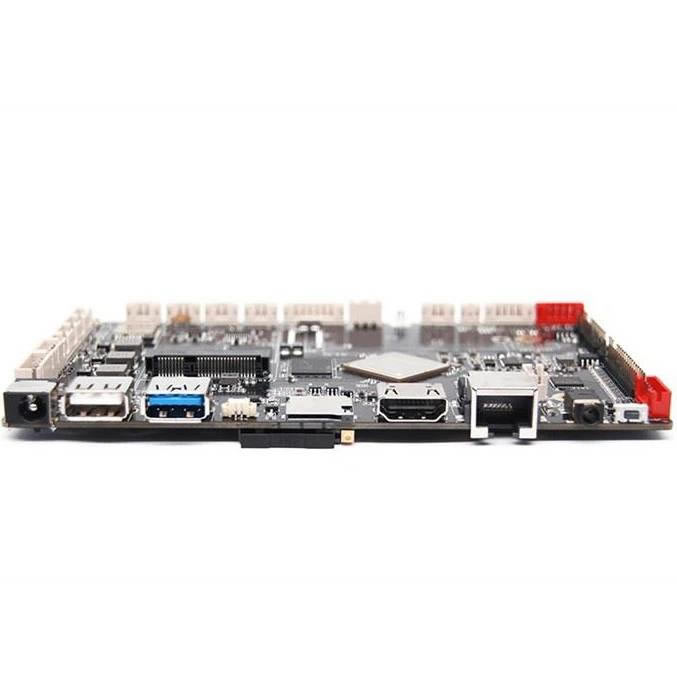

4. Rich expansion interface. 6 USB ports (4 pins, 2 standard USB ports), 4 serial ports (2 TTL, 1 RS232, 1 RS485), GPIO/CAN/ADC interface, which can meet the requirements of various peripherals on the market.
5. Support dual-screen different display. The LVDS screen supports a maximum resolution of 1920*1200, and the EDP screen supports a maximum resolution of 2560*1600.

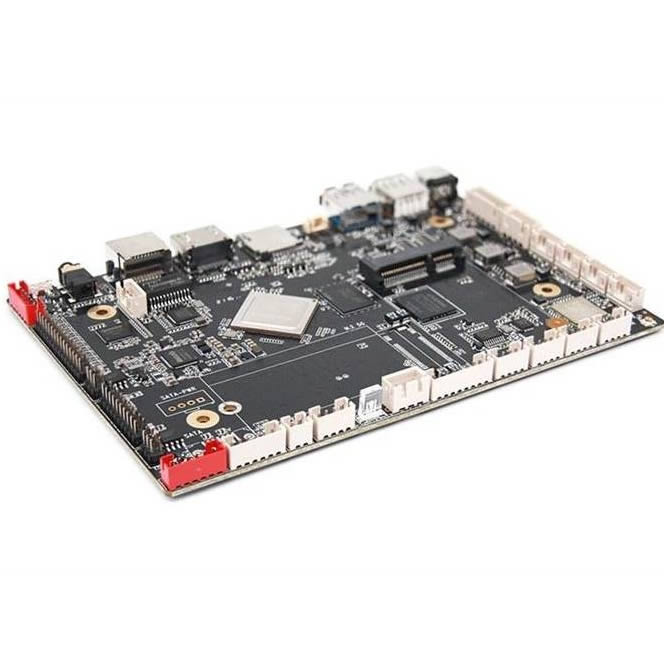

6. Support SATA hard disk interface, which can meet the needs of storage expansion.
Scope Of Application
IoT-3568A V1.0 belongs to the motherboard of commercial display self-service terminal, which is generally applicable to smart display terminal products, video terminal products, and industrial automation terminal products, such as: advertising machines, digital signage, smart self-service terminals, smart retail terminals, O2O smart devices, industrial control host, robot equipment, etc.
Product Overview

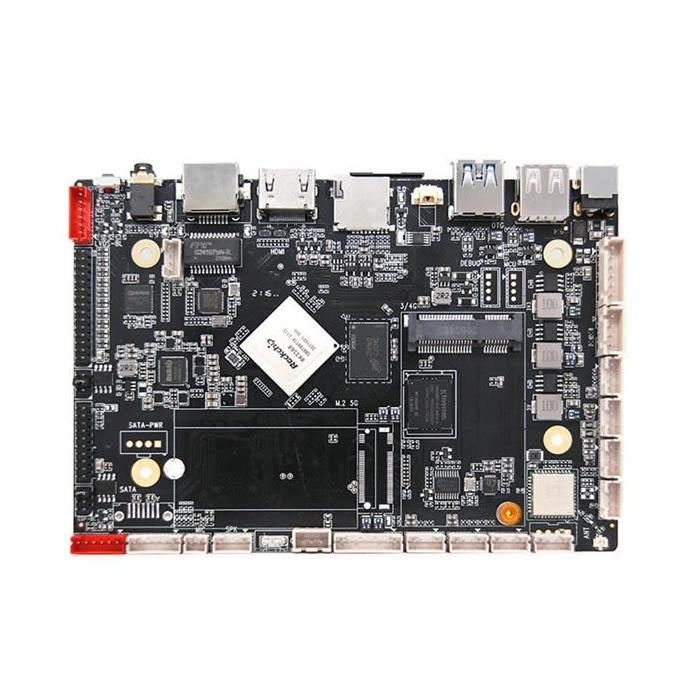

IoT-3568A V1.0 uses Rockchip RK3568 (Cortex-A55x4) quad-core processor, equipped with Android11 system, the main frequency is up to 2.0GHz, super performance, and rich interfaces. Whether it is benchmark or decoding, it is first-class, and it is your new choice in human-computer interaction and industrial control projects.
| List of Basic Functions | |
| Main functional parameters | |
| Size | 146*100mm |
| CPU | RK3568A, quad core，highest frequency 2.0GHz |
| Operating system | Android 11.0 |
| RAM/Storage | Standard 2G/ Standard 16G |
| Built-in ROM | 2KB EEPROM（ (4G optional) / Standard ） |
| HDMI output | 1, standard Type-A female socket, up to 4Kx2K@60Hz resolution |
| LVDS output | 1, support single/dual 8 bit, can directly drive 50/60Hz LCD screen |
| eDP output | Can directly drive multiple resolution eDP interface LCD screens |
| Video format | Support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, etc. |
| Image format | Support BMP、JPEG、PNG、GIF |
| Audio input/output | Speaker output（Support left and right channel output, maximum support double 20W / 4R，10W / 8R）、MIC IN*1 |
| Headphone output | Support one-way three/four-segment headphone insertion |
| USB port | 1 USB3.0 OTG、5 USB HOST |
| Serial port | 4: 1*232, 2*TTL, 1*485 (One of the TTL can be optional RS232 interface) |
| CAN | 1 |
| TP port | 1，can be connected to I2C interface TP screen |
| Network support | 1. Support 10/100/1000M adaptive Ethernet |
| 2. Built-in WiFi, support Bluetooth 4.2 | |
| 3. Built-in 4G, can support Internet | |
| Storage card | Support TF card |
| RTC real-time clock | Support |
| System upgrade | Support local USB upgrade |
