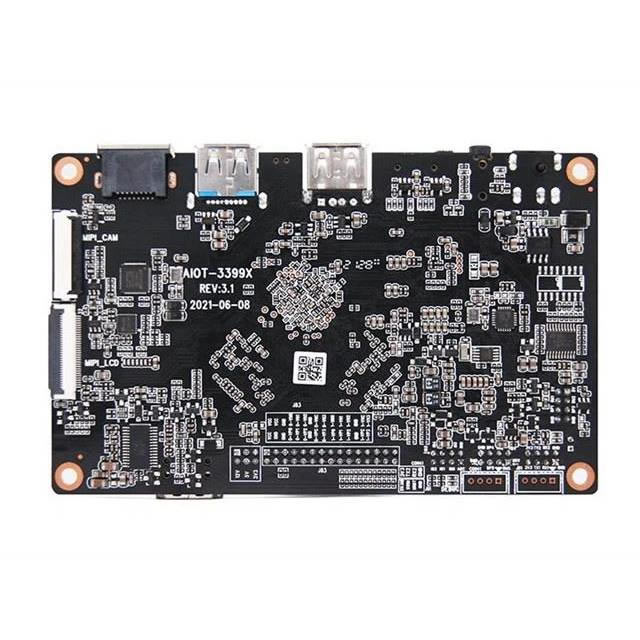

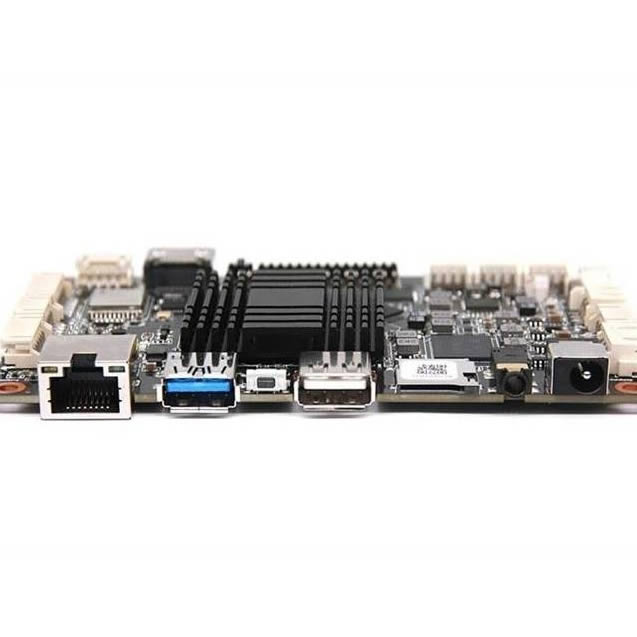

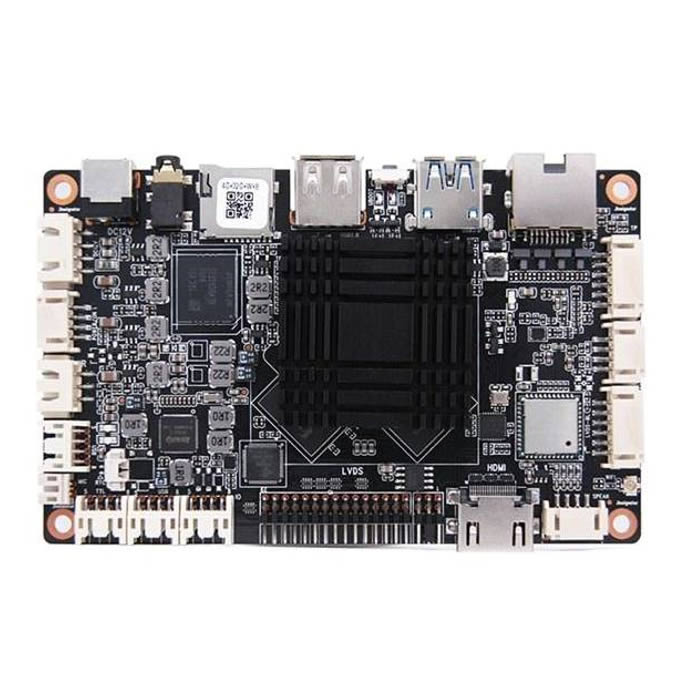

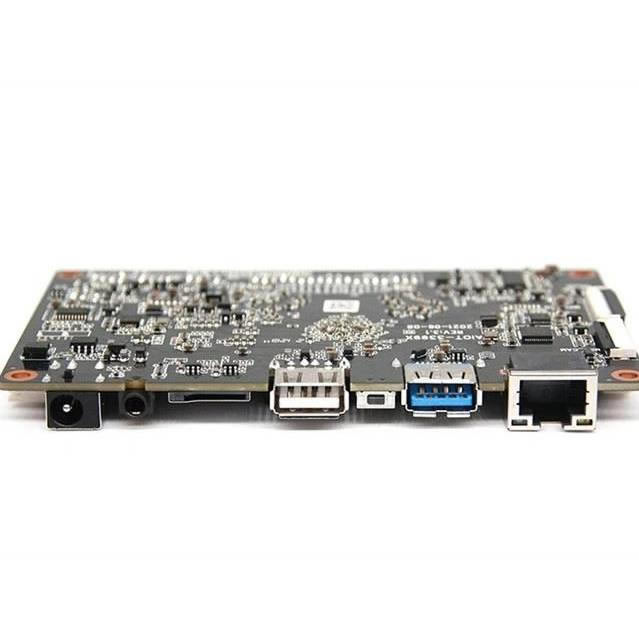

AIoT-3399X Hgh-End Self-Service Terminal Mainboard
AIoT-3399X Hgh-End Self-Service Terminal Mainboard
AIoT-3399X Hgh-End Self-Service Terminal Mainboard
1. RK3399 super CPU is equipped with Android 7.1 system, faster and more powerful.
2. Support 5G and 2.4G WIFI, single antenna.
3. Network port design, support 1000M network port.
4. Support USB interface 3G/4G module. Support Huawei, ZTE, Longshang and other 3G/4G modules.

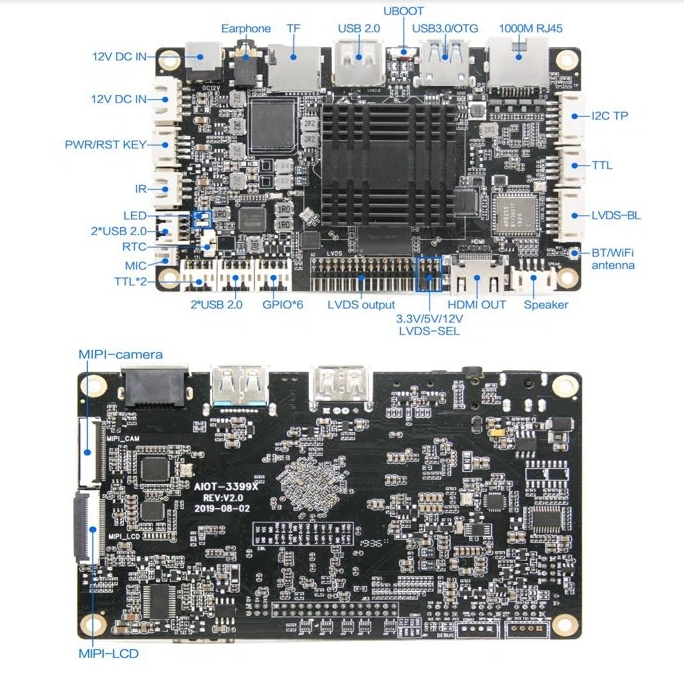

5. Rich expansion interface. 6 USB interfaces (1 USB3.0 OTG, +1 USB2.0+4 HUB), 3 way extensible TTL serial ports, GPIO and IIC, ADC interface, can meet a variety of market Peripheral requirements.
6. High definition. Supports 4K decoding of 3840x2160, supports LCD display and cutting screen of LVDS/MIPI/HDMI OUT interface, and supports dual screen & different display.
Scope of application
AIoT-3399X belongs to Android intelligent motherboard, which is generally applicable to intelligent display terminal products, video terminal products and industrial automation terminal products, such as: advertising machine, digital signage, intelligent self-service terminal, intelligent retail terminal, O2O intelligent equipment, industrial control host, robot equipment, etc.
Product Overview
AIoT-3399X adopts Rockchip RK3399 (double Cortex-A72 big core + four Cortex-A53 small core) six-core 64-bit super CPU, equipped with Android7.1 system, main frequency up to 1.8 GHz. With Mali-T860MP4 GPU, it supports 4K and H.265 hard decoding. Multi-channel video output and input, stronger performance, faster speed, richer interface, is your best choice in human-computer interaction, intelligent terminal, industrial control projects.
| Basic function list | |
| Main functional parameters | |
| Size | 120*75mm |
| CPU | RK3399, six-core，the main frequency is up to1.8GHz |
| Operating system | Android 7.1 |
| Memory/storage | Standard 2G（4G Optional）/ Standard 16G（8G/32G/64G Optional） |
| Built-in ROM | 2KB EEPROM（Do not included by default，Optional） |
| HDMI output | 1, support 1080P@60Hz，4kx2k@60Hz output |
| LVDS output | 1 single/double channel, can drive 1920x1080 LCD directly |
| MIPI output | Can directly drive a variety of resolution MIPI LCD |
| Mipi Camera | 30pin FPC Interface，Support 1300w Camera |
| Video format | Support wmv、avi、flv、rm、rmvb、mpeg 、ts、mp4, etc |
| Picture format | Support BMP、JPEG、PNG、GIF |
| Audio input/output | Speaker output （Support left and right channel output, Built-in dual 4R/20W，8R/10W power amplifier）、MIC IN、headphone |
| USB port | 6 Way（1 USB3.0 and 1 USB2.0 HOST standard USB socket, 4 USB sockets） |
| Serial port/extension interface | 3-channel TTL serial port, 1-channel IIC, 6-channel GPIO interface, 1-channel ADC, 1-channel IR |
| Network support | 1、Support 10/100m /1000M adaptive Ethernet |
| 2、Built-in WiFi, support hotspot sharing, support Bluetooth 4.0 (standard) | |
| Storage card | Support TF card |
| RTC real-time clock | Support, support timing switcher |
| System Update | Support local USB upgrade |
