Android Karaoke amplifier

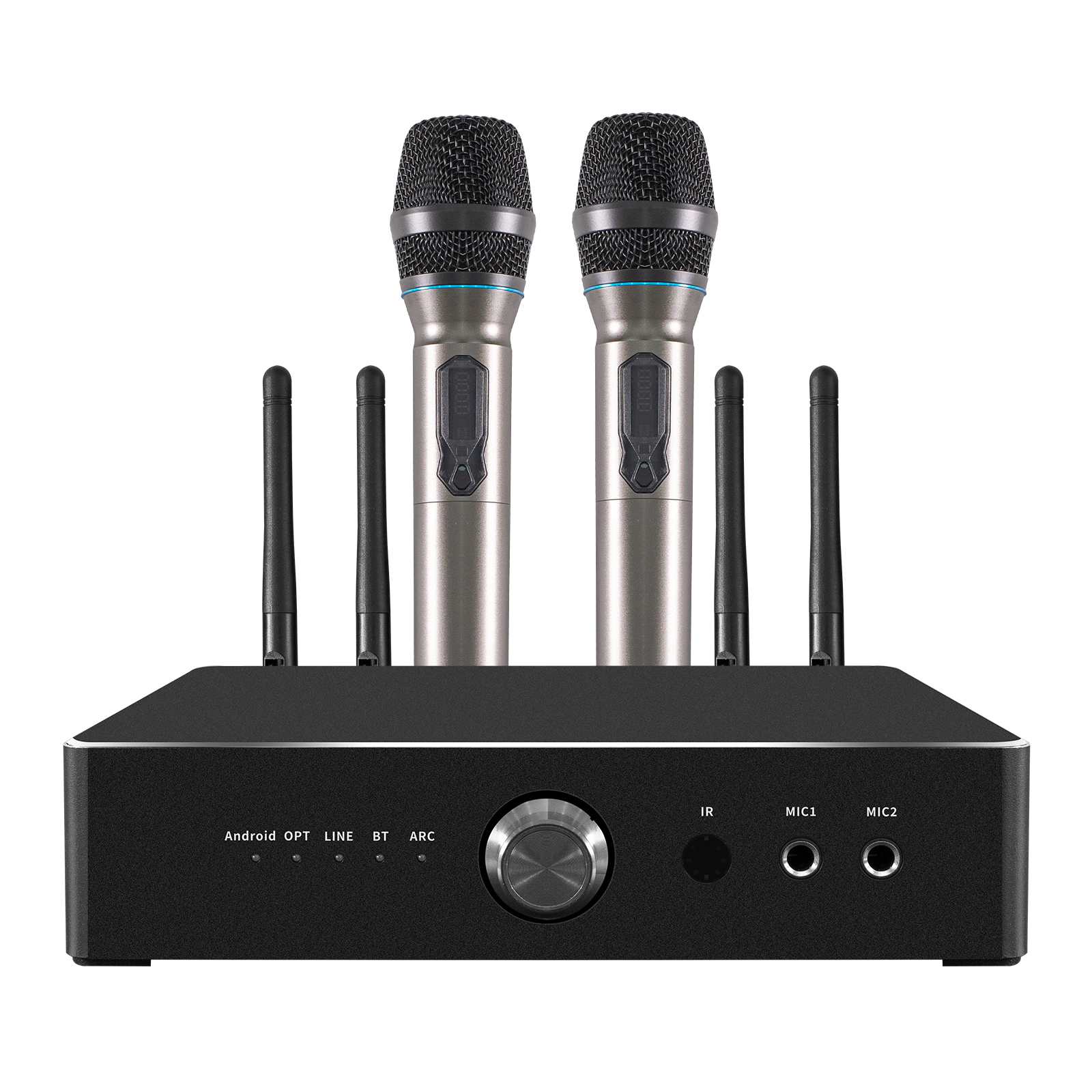

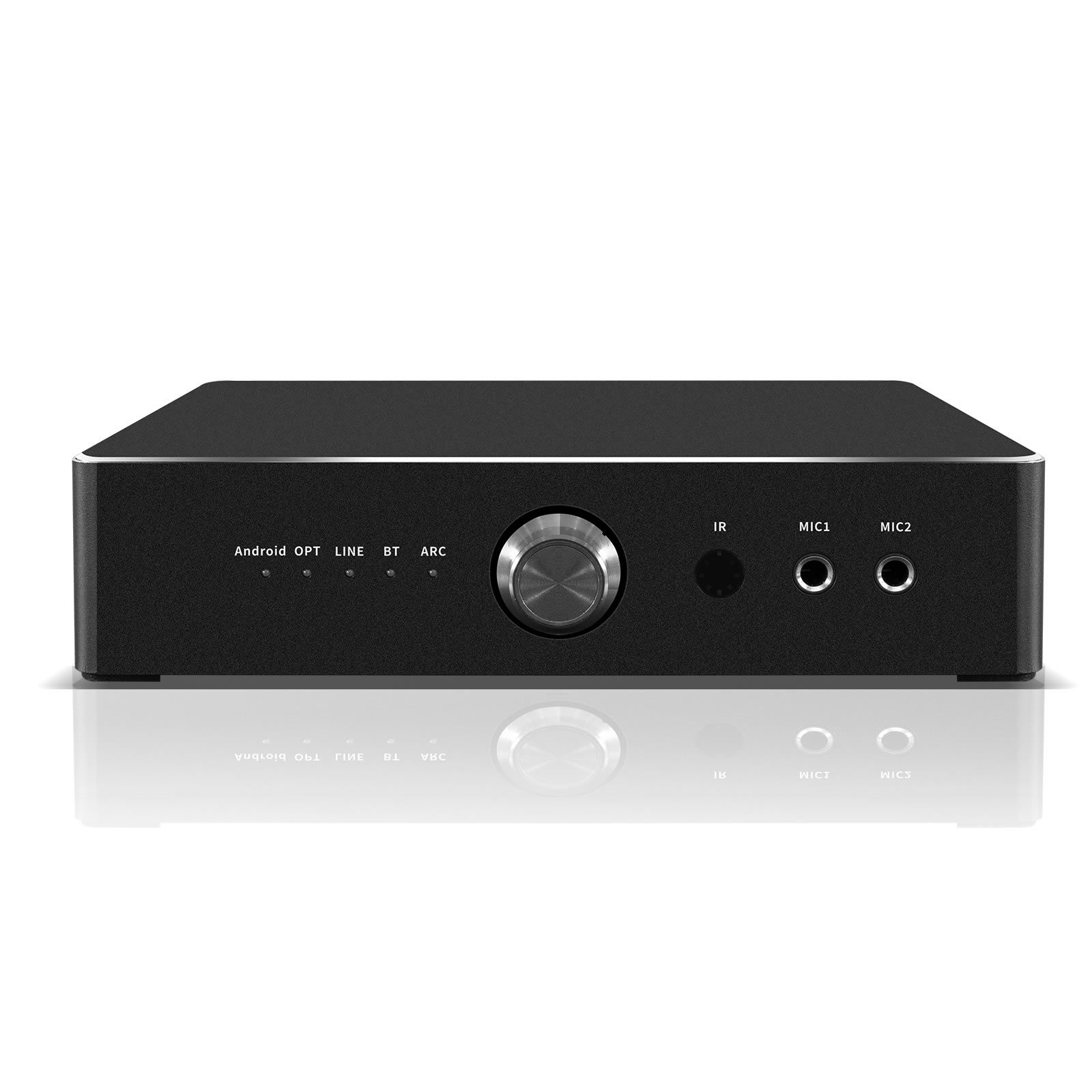

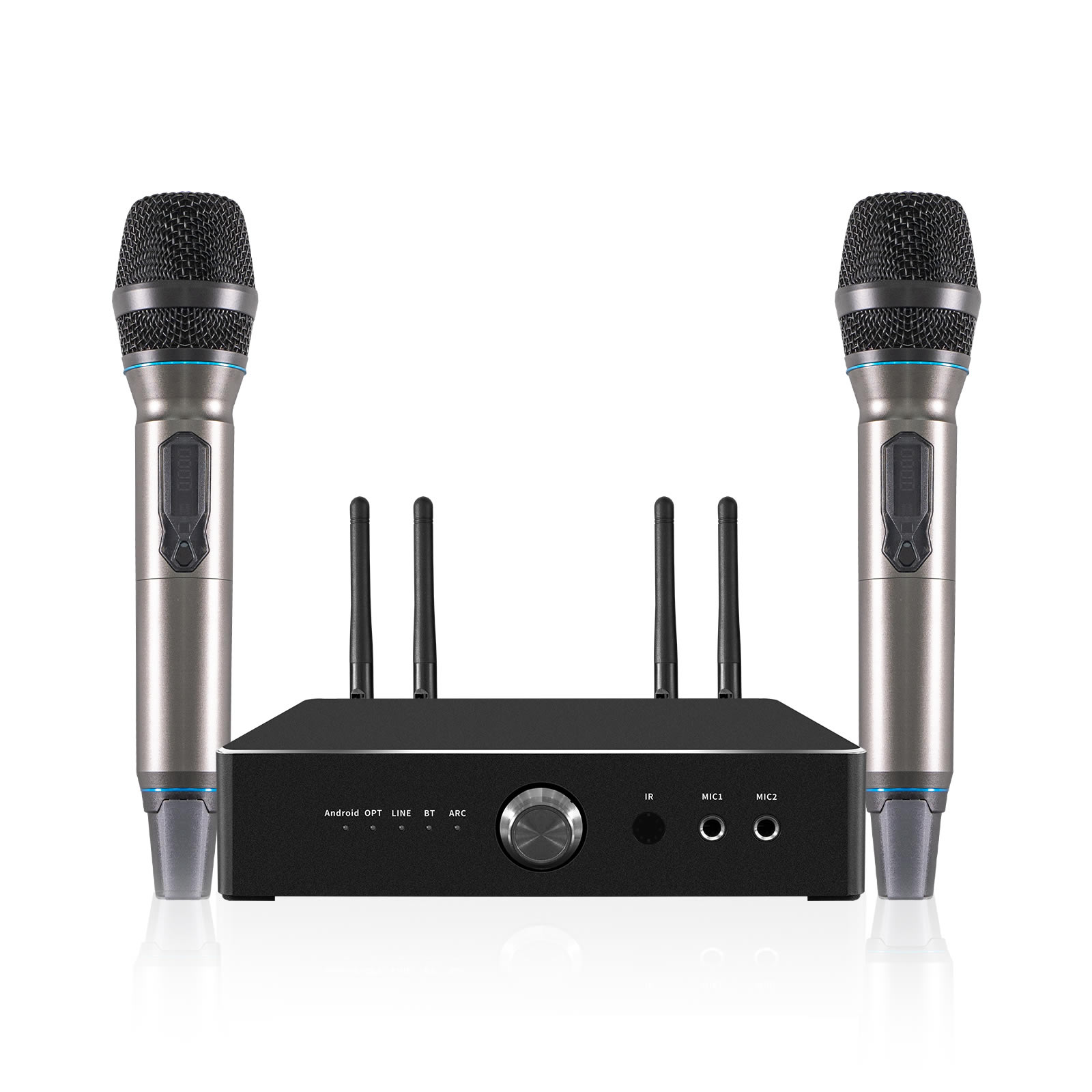

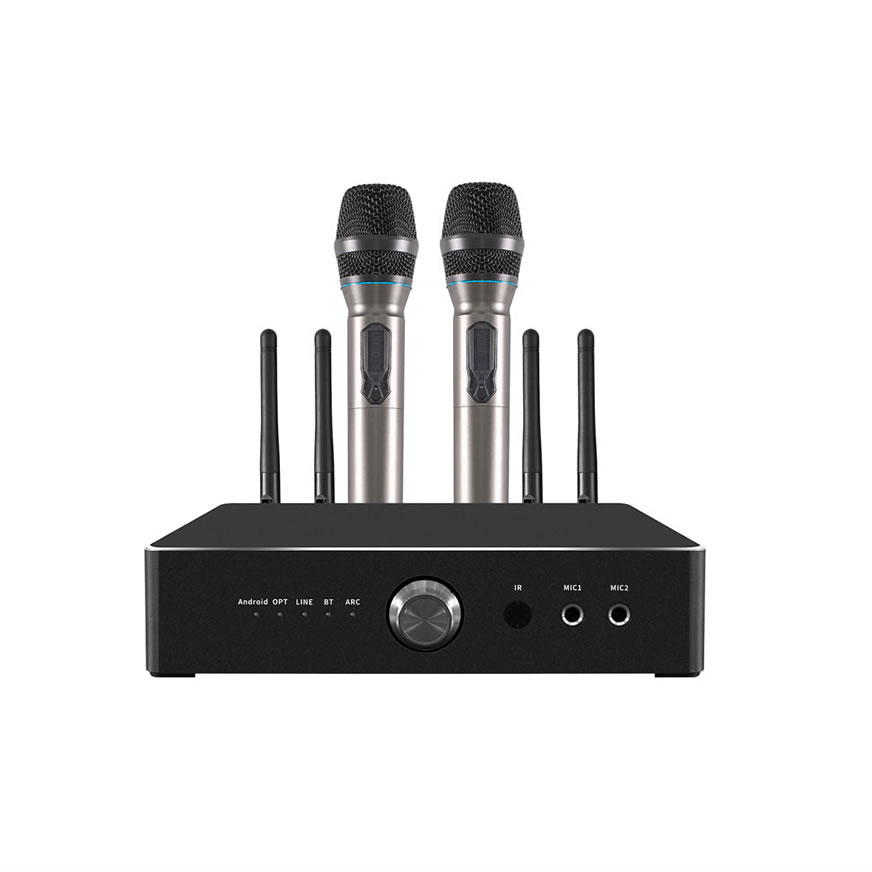

How it looks？
Ihomelife HLQ is made of pure aluminum alloy, with exquisite appearance design and black and white inlays, which shows high-end atmosphere. It is a standard home theater audio system device with beautiful and multifunctional features.
What functions does it have?
HLQ is an innovative song ordering/movie playing/game/4-way microphone karaoke/Bluetooth/HD output/HD ARC input/analog RCA audio input/dual USB multi-function high-power amplifier, which can be connected to your home WIFI network to turn your speaker into a home theater sound system. The simple Android operating system provides you with the simplest smart experience.

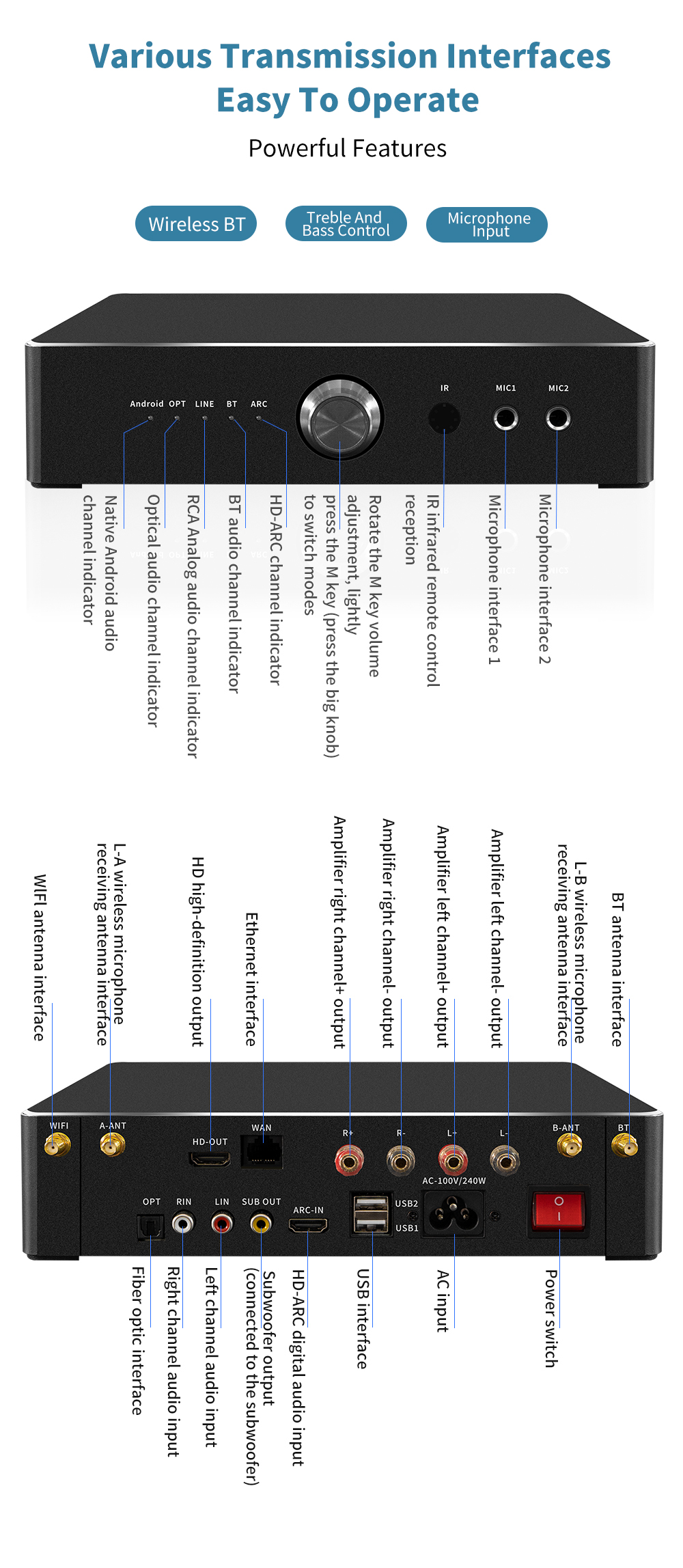

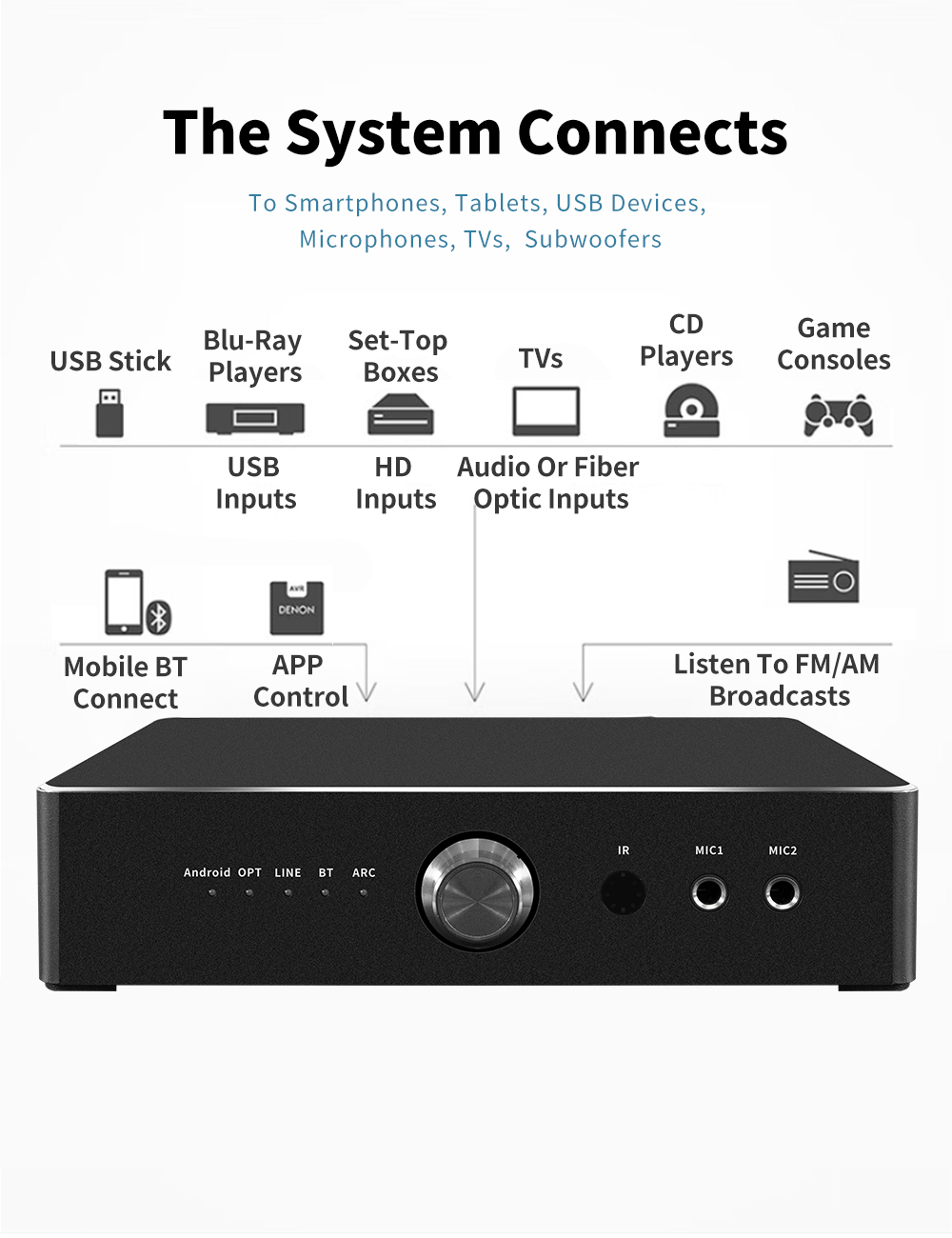

What interfaces does it support?

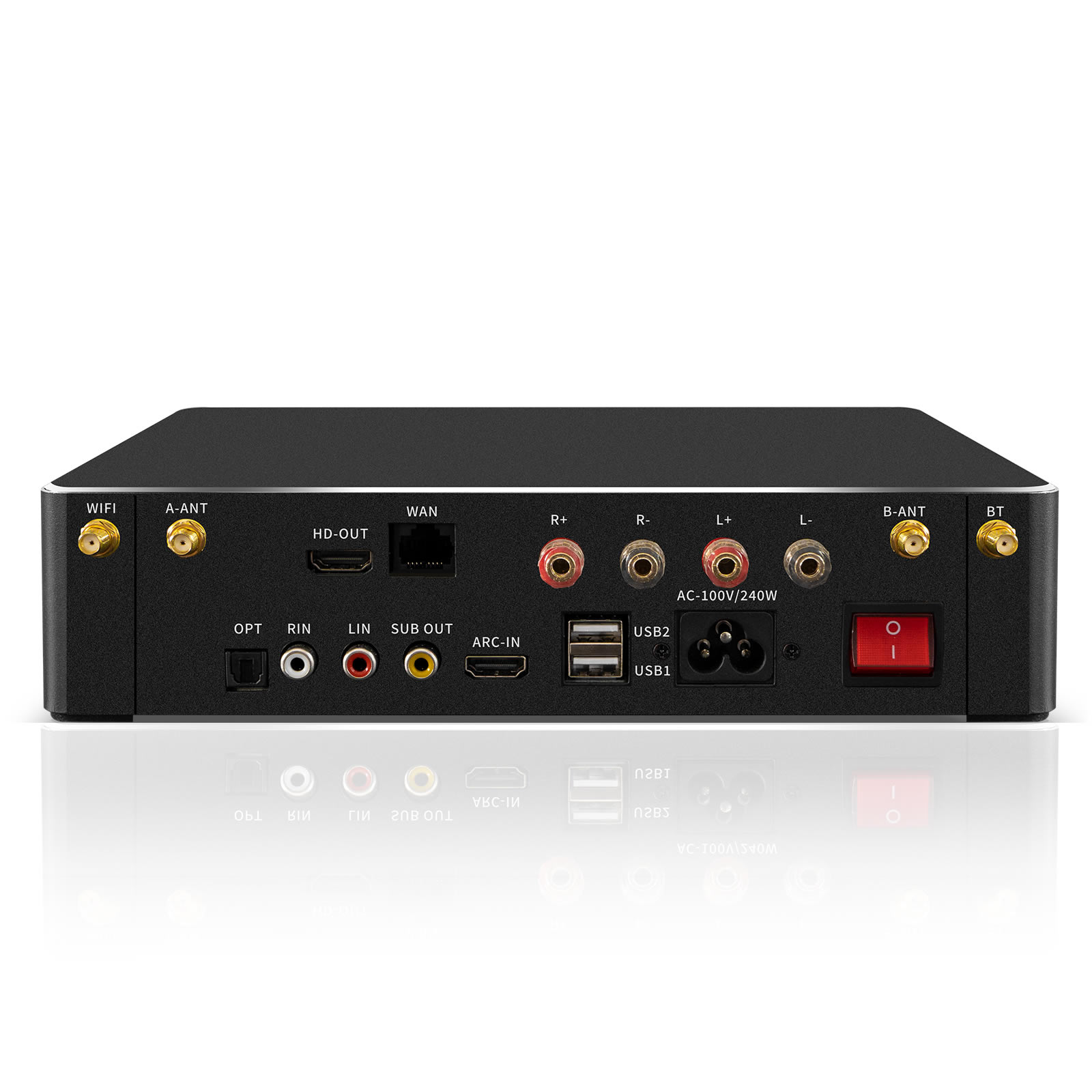

HLQ has a variety of interfaces. The front end can be connected to two wired microphones. In addition to being able to connect a pair of speakers and a subwoofer at the back end, you can also connect a USB flash drive or a mobile hard disk to play audio and video as needed. You can also connect virtual digital signals through LIN/RIN and connect external devices through optical fiber interfaces.
What usage scenarios does it support
HLQ is small in size, powerful, and easy to carry. It can be used in any venue. It uses the native Android system and can be connected to the TV to watch your favorite programs and movies. It can be used for gatherings with friends on weekends, holiday parties, church and school broadcasts, and conference speeches。
Product Specifications:
| Model | HLQ-600W/300W |
| Android solution | Amlogic S905 |
| OS | Android 12 |
| Ram&Rom | DDR4 2GB Ram ,8GB rom |
| Video decoding | Support H.264/H.265 decoding 4K |
| Bluetooth | Bluetooth 5.0 |
| Mouse | Support |
| Wired microphone | Support - external interface wired microphone interface *2 |
| Wireless microphone | Support - Built-in dual wireless microphone reception (optional) |
| DSP | Built-in high-performance DSP processor |
| DAC | imported ES high-performance audio DAC decoding, sampling rate 192K |
| Pre-amplifier | Adopt imported double operational amplifier (NE5532 ) |
| Pure post-power amplifier | Adopt imported high power amplifier chip |
| Read card | Support USB disk |
| Out put | HD out put |
| Gold plated banana head speaker interface | |
| Audio input | RCA simulates input |
| ARC input (HDMI-ARC digital audio connected to TV output) | |
| Ethernet | 100M lan |
| Wireless wifi | 2.4Ghz/5Ghz |
| USB | USB *2 |
| EQ | Support high and low pitch adjustment + - |
| Reverb depth adjustment | Support IR remote control reverb adjustment + - |
| Microphone volume adjustment | Support IR remote control microphone volume adjustment + - |
| IR | Support IR remote control operation |
| Frequency response | 20Hz-20KHz |
| THD+N | 1%, 300W x2 @1KHz |
| Speaker impedance | 3-8ohm |
| Speaker output power | 400W&650W @4ohm |
| Power input | AC 110V/220V |
| Dimensions | 231*220*55mm |
| Weight | / |
| Color | Black |
| Usage | Home theater, entertainment, early childhood education, video conference, online teaching |

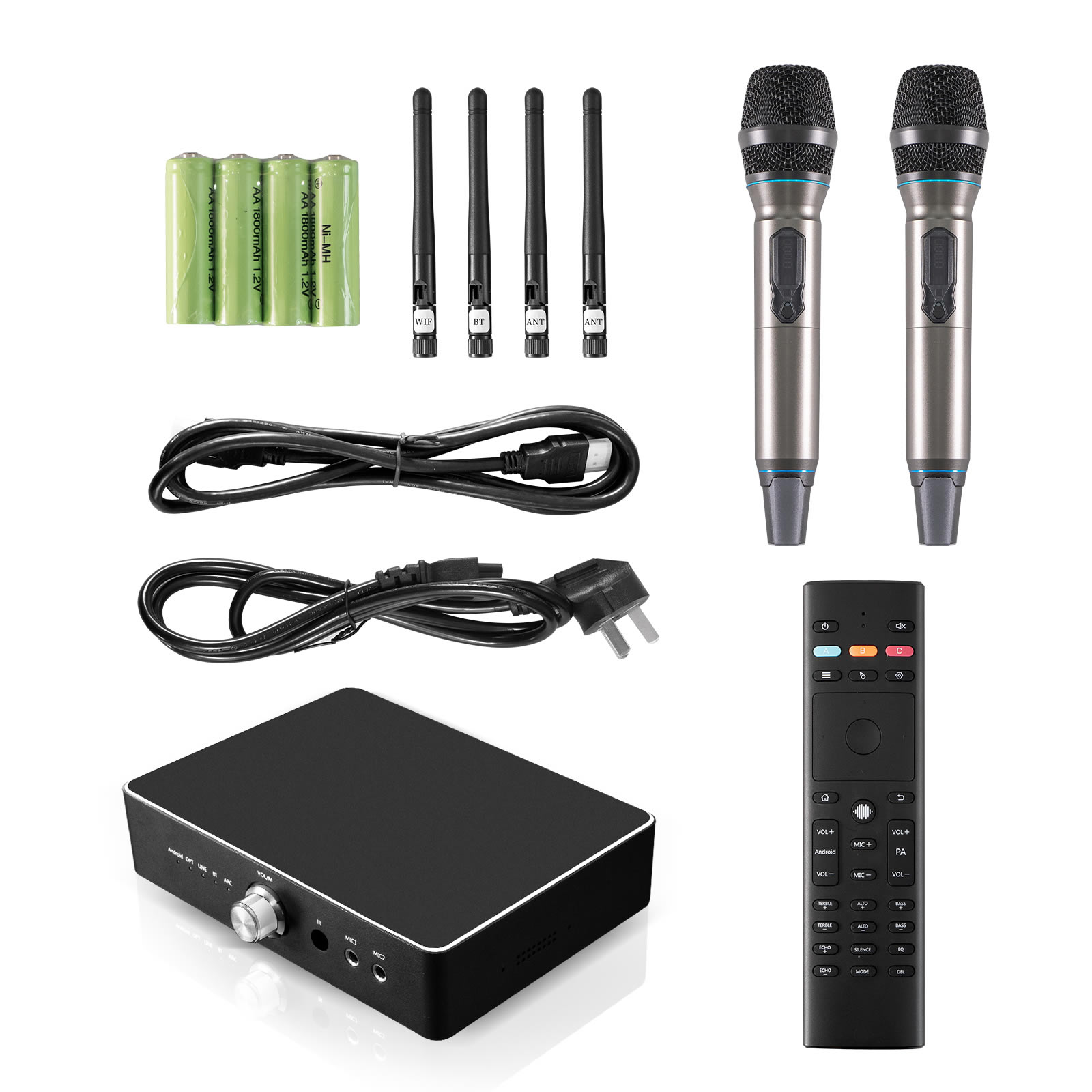

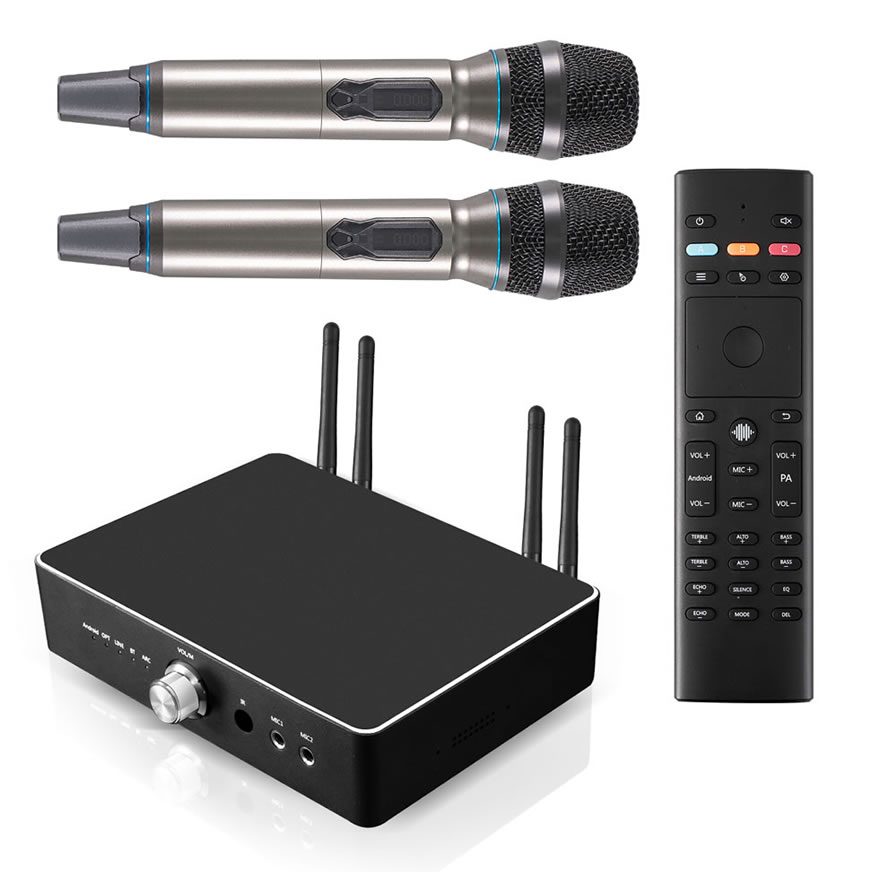

| Standard Accessory | Power cord, remote control, HD cable, rechargeable lithium batteries*4, external antennas*4, wireless microphones*2 |
| Adapter | Power cord 1.2m |
| Power supply | 110-220V |
| WIFI | Yes |
| Fast Boot | 3 Sec |
| Packing Weight | 3.5KG |
| color box packing size | 300x140x250mm |
| Microphone specification： | |
| Frequency range | 600MHZ-850MHZ |
| Carrier frequency | 500MHZ |
| Receiving distance | 30-80M |
| Frequency response | 60Hz-15KHz(t3db) |
| Shock way | DSP |
| Frequency stability | ±10ppm |
| Distortion degree | ≤0.5% |
| Signal-to-noise ratio(S/N) | ＞90dB |
| Modulation mode | UAF |
| Adapterization way | Moving-coil |
| Output level | 200MV±5MV |
| Power | DC 5V |
| Endurance time | 4~8h |
| Sound frequency | 40~1800Hz |
