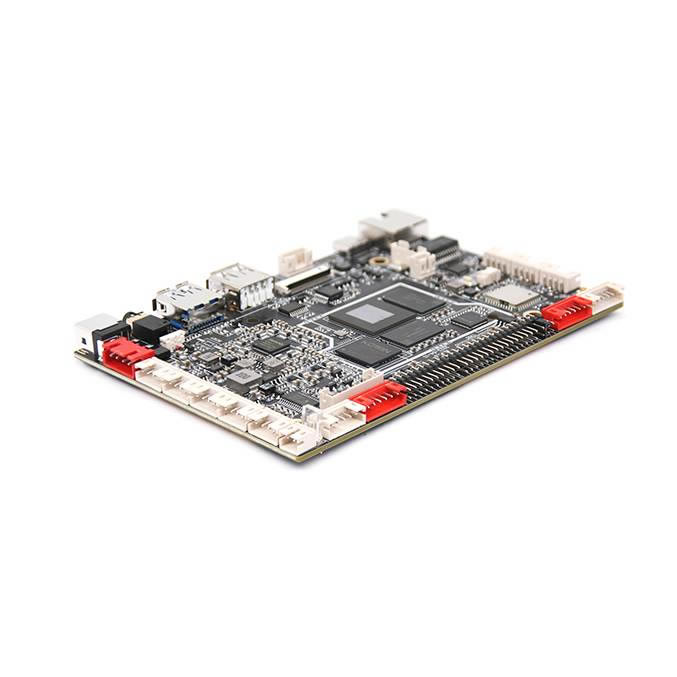

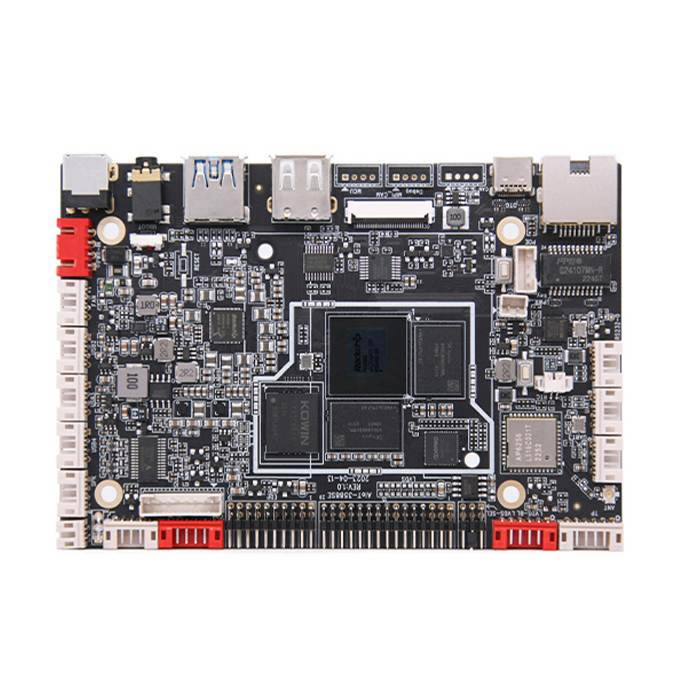

AIoT-3588SE Intelligent Terminal Mainboard
AIoT-3588A Intelligent Terminal Mainboard
1. High integration. Integrating LVDS/MIPI/eDP/dispersion/WIFI/BT into one, simple and ultra-thin, outstanding.

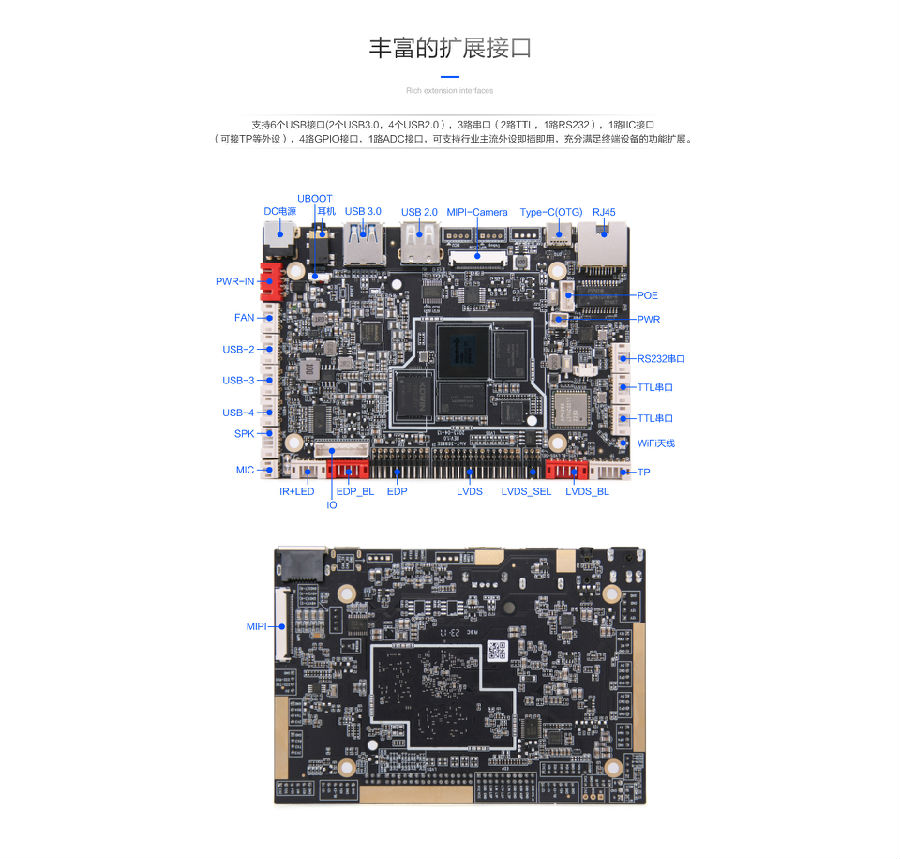

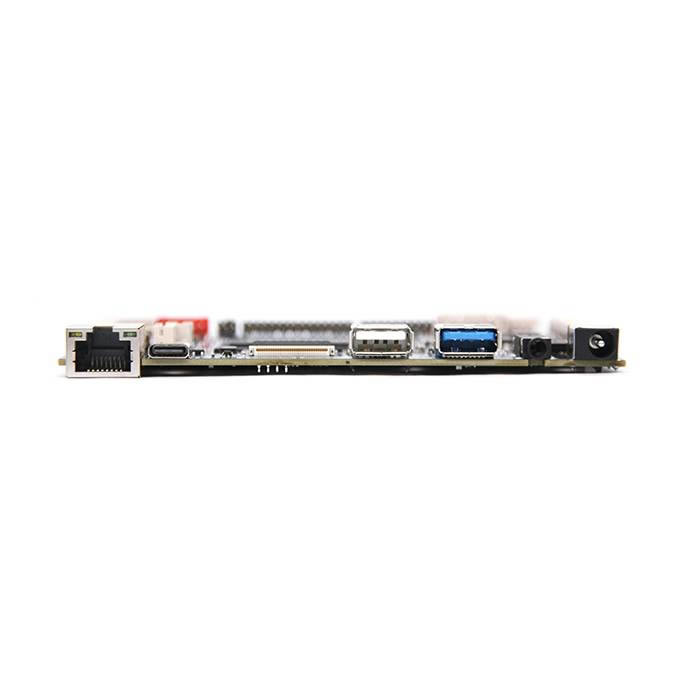

2. Rich expansion interfaces. 6 USB interfaces (3 pins, 2 standard USB-A ports, 1 type-C), 3 serial ports (2 TTL, 1 RS232), GPIO/ADC interface, which can meet the needs of various external devices on the market. requirements.
3. Supports three-screen display and multi-screen display. The LVDS screen supports a maximum resolution of 1920*1200, the eDP screen supports a maximum resolution of 3840*2160, and the mipi screen supports a maximum resolution of 1920*1200.
4. Performance. It comes with a deep neural network unit (NPU) with a performance of up to 6.0 TOPS, which can meet the needs of deep learning projects.
5. Support Android system customization, provide system call interface API reference code, and perfectly support customer upper-level application APP development.
6. Perfectly supports multiple bus touch screens such as infrared, optical, capacitive, resistive, and touch film, and supports HID configuration and collection of driver-free touch screens.
7. Supports USB single and binocular cameras, and MIPI cameras. The MIPI interface can support 1x4-lane@2.5Gbps/lane, and can support up to 48M pixels (8064X6048).
